产品特点

Product  Feature

◆ 卓越的性能

Product Overview

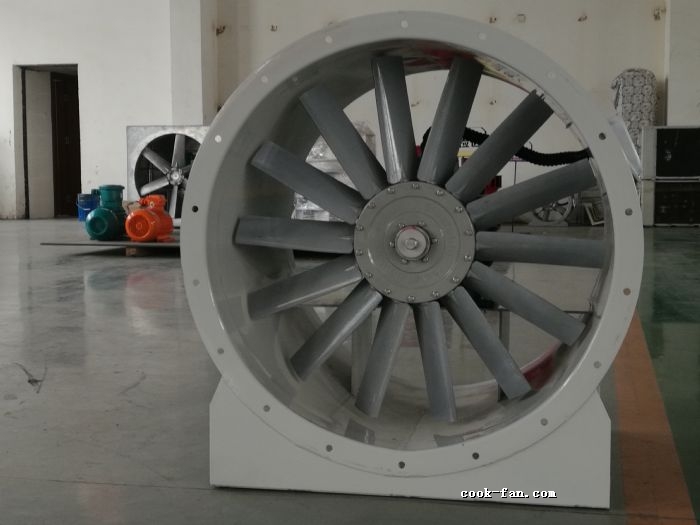

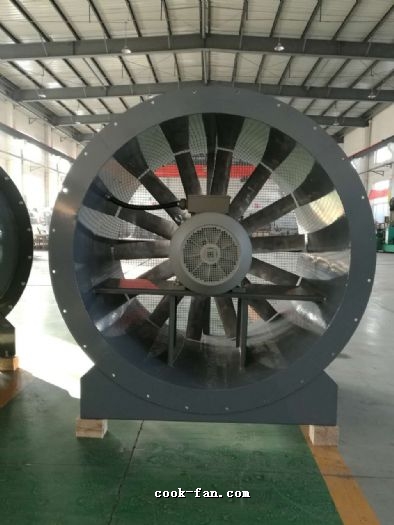

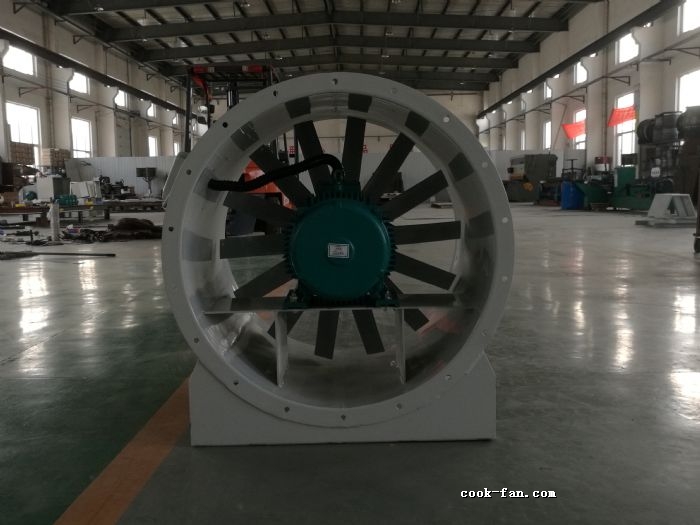

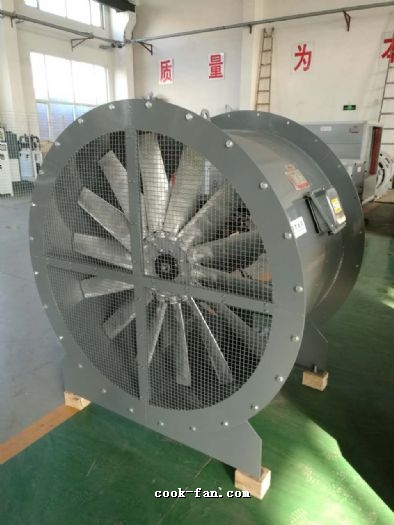

★ ADD系列轴流风机具有可靠的性能和耐久力，适用于民用、公共建筑、厂房等建筑的送排风，同时该系列风机经国家权威部门认可可以用于消防排烟。

   Model AS axial flow fans are important part of products. They have excellent Performance and workmanship,

are suitable for commercial building supply and exhaust application. These Fans are approved for smoke removal

duty by China authorities.

★工作范围：最大风量可达120000m3/h，静压高达850Pa；

Volume up to:120000 M3/H, Static Pressure: up to 850Pa.

★平衡等级：平衡等级高达G2.5（ISO-1940）

Balancing Level as high as G2.5 (ISO.1940).

◆ 用途:

USAGE:

★用于高层建筑的送排风

For building general supply/exhaust ventilation

★可用于消防排烟或正压送风

For emergency smoke removal or positive pressure supply duty application

★车库、地铁及隧道的排烟

  Underground parking , subway and tunnel smoke removal

★可用于厨房的排油烟

  For kitchen grease exhaust application

★配置泛水帽及防雨罩作为屋顶风机或屋顶排烟风机

  For roof supply and (smoke) exhaust application when equipped with roof curb cap and weather hood.

◆ ADD的认证

Complied certificates and regulations

★ADD风机经国家固定灭火系统和耐火构件质量监督检测中心，按《一般用途轴流通风机技术条件》检验，常规性能符合要求：按照《消防排烟风机耐高温试验方法》检验，在主风道温度达280摄氏度时连续运行30分钟以上，符合耐高温性能要求，检验合格。

ADD fans are tested by “China National Fixed Fire Fighting System and fire Resistant Components Quality Inspection and Testing Center.”The fan typical performance is approved complying with the “General Usage Axial Fan Technical Specification”(China Nation Standard GB/T 13274-91).The fans are also tested According to China Standard GA211-1999”Fire Fighting Smoke Removal Fan

High Temperature Testing Method, run continuously over 30 minutes when the Main duct air temperature is 280℃. The fans are certified to resist high temperatures.

★ADD风机符合国际GB50067-97《汽车库，修车库，停车库设计防火规范》的要求，可用于上述场合的排烟和通风使用作为两用风机。

ADD fans comply with China Nation Standard GB50067-97(“Codes of Fire Fighting Design of Garage/Car repairing facilities/parking warehouse”)

◆ 产品特色

Product  Feature

★ADD叶片采用流畅模拟技术优化，保证运转时局部受力均衡，高效节能，运行平稳，噪声低，耐高温性能的特点。

The blade of ADD fans are optinized by CAD Hydro -field simulating technology during the design process. The Partial stress is evenly located and spread .The blade design is high efficiency and energy saving .It runs smoothly ring operation and low noise . The fan is reliable and stable when running at high temperature.

★ADD叶片加工采用优质的模具进行机械加工，保证了叶片弧度一致，质量可靠，长期运转建立了优质的基础。

  The ADD blade fabrication is taking advantage of good quality and high efficiency mechanical molds .this ensures Surface curves is stable for each single blade .the size are all identical ,and the mass distribution is even. This feature setup a good foundation for long time stable running .

★ADD风机结构采用一体式法兰加工，设计强度高，风机可以落地安装和水平吊装，垂直吊装等。配上泛水帽和防雨罩时可以作为屋顶风机使用。

  The ADD fan motor is located in a special chamber ,and isolated from air stream .The pressure in the motor chamber is negative when the fan is running , and sucks in outside clean/cool air positively through a special tube exhausted. Out of the fan after cooling the motor .This design ensures proper cooling at high temperature .

★ADD叶片具有多种规格，配合各种电机转速或双速电机，十分灵活。

Leaf blade with a variety of specifications, with the speed of the motor or double speed motor, very flexible.

◆命名规范

Naming Convention

例：ADD-1000 D6-0.75

▲ ADD: 轴流式风机

   ADD axial (smoke removal)fan

▲ 1000: 风机叶轮名义直径1000毫米

   The nominal propeller diameter is 1000mm

▲ D6: 六极电机，风机转速960RPM

   Motor poles and RPM

▲ 0.75:电机功率0.75Kw

   Motor power 0.75Kw
